Destination Earth Platform Ontology

Release: 2026-07-07

Revision:
1.0.2
Authors:
DestinE Platform
Download serialization:
JSON-LD RDF/XML N-Triples TTL
License:
CC BY 4.0
Destination Earth Platform Ontology

Abstract

The Destination Earth Platform Ontology is a formal semantic model developed to represent and describe the ecosystem of the Destination Earth Platform, a flagship initiative of the European Union aimed at creating a high-precision digital twin of planet Earth.

The ontology provides a conceptual framework for the integrated description of three fundamental domains:

(i) Geospatial and climate data resources, including satellite observations, in-situ measurements, computational model outputs, and IoT data;
(ii) The digital services and technological infrastructure of the platform;
(iii) The governance model, encompassing user management, tenancy, and computational resources.

The Destination Earth Platform Ontology extends the W3C DCAT 3 (Data Catalog Vocabulary) standard and integrates well-established vocabularies such as Dublin Core Terms, FOAF, PROV-O, and ODRL, ensuring interoperability with European data catalogues and compliance with DCAT-AP 3.0.0 profiles.

The hierarchical structure enables intuitive navigation of the platform's information assets:

Program → ProgramSubset → Collection → Dataset → Product

Introduction back to ToC

Destination Earth (DestinE) is a flagship initiative of the European Union aimed at developing a high-precision digital twin of the Earth to support environmental monitoring, climate analysis, and evidence-based policy-making.

The DestinE Platform provides the core infrastructure for accessing, processing, and analysing vast amounts of geospatial and climate data from sources such as:

Copernicus programme · ECMWF · ESA

The Destination Earth Platform Ontology provides a formal semantic model to ensure interoperability, discoverability, and consistent cataloguing of the platform's data resources, services, and governance structures.

It extends the W3C DCAT 3 standard and integrates established vocabularies including:

Dublin Core · FOAF · PROV-O · ODRL

Ensuring compliance with DCAT-AP 3.0.0 profiles for European data portals.

Namespace declarations

Table 1: Namespaces used in the document
dc<http://purl.org/dc/elements/1.1/>
dcat<http://www.w3.org/ns/dcat#>
dcatap<https://semiceu.github.io/DCAT-AP/releases/3.0.0>
desp<https://ontology.destine.eu/desp#>
foaf<http://xmlns.com/foaf/0.1/>
legacy_adms<https://www.w3.org/ns/legacy_adms#>
odrl<http://www.w3.org/ns/odrl/2/>
org<http://www.w3.org/ns/org#>
owl<http://www.w3.org/2002/07/owl#>
prov<http://www.w3.org/ns/prov#>
r5r<https://data.europa.eu/r5r/>
rdf<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
rdfs<http://www.w3.org/2000/01/rdf-schema#>
skos<http://www.w3.org/2004/02/skos/core#>
terms<http://purl.org/dc/terms/>
terms1<http://spdx.org/rdf/terms#>
xml<http://www.w3.org/XML/1998/namespace>
xsd<http://www.w3.org/2001/XMLSchema#>

Destination Earth Platform Ontology: Overview back to ToC

This ontology has the following classes and properties.

Classes

Object Properties

Data Properties

Annotation Properties

Destination Earth Platform Ontology: Description back to ToC

The Destination Earth Platform Ontology provides a semantic framework for describing the core assets of the DestinE Platform: Datasets and Services.

Datasets

Datasets are organised hierarchically from programmes down to individual products, reflecting how environmental and climate data are structured within major European initiatives.

Each dataset, characterised by spatial and temporal properties, is catalogued by the model within a taxonomy of seven dataset types:

Satellite observations · Computational models · In-situ measurements · IoT · Geospatial models · Non-satellite observations · Statistical analyses

Each type includes domain-specific metadata.

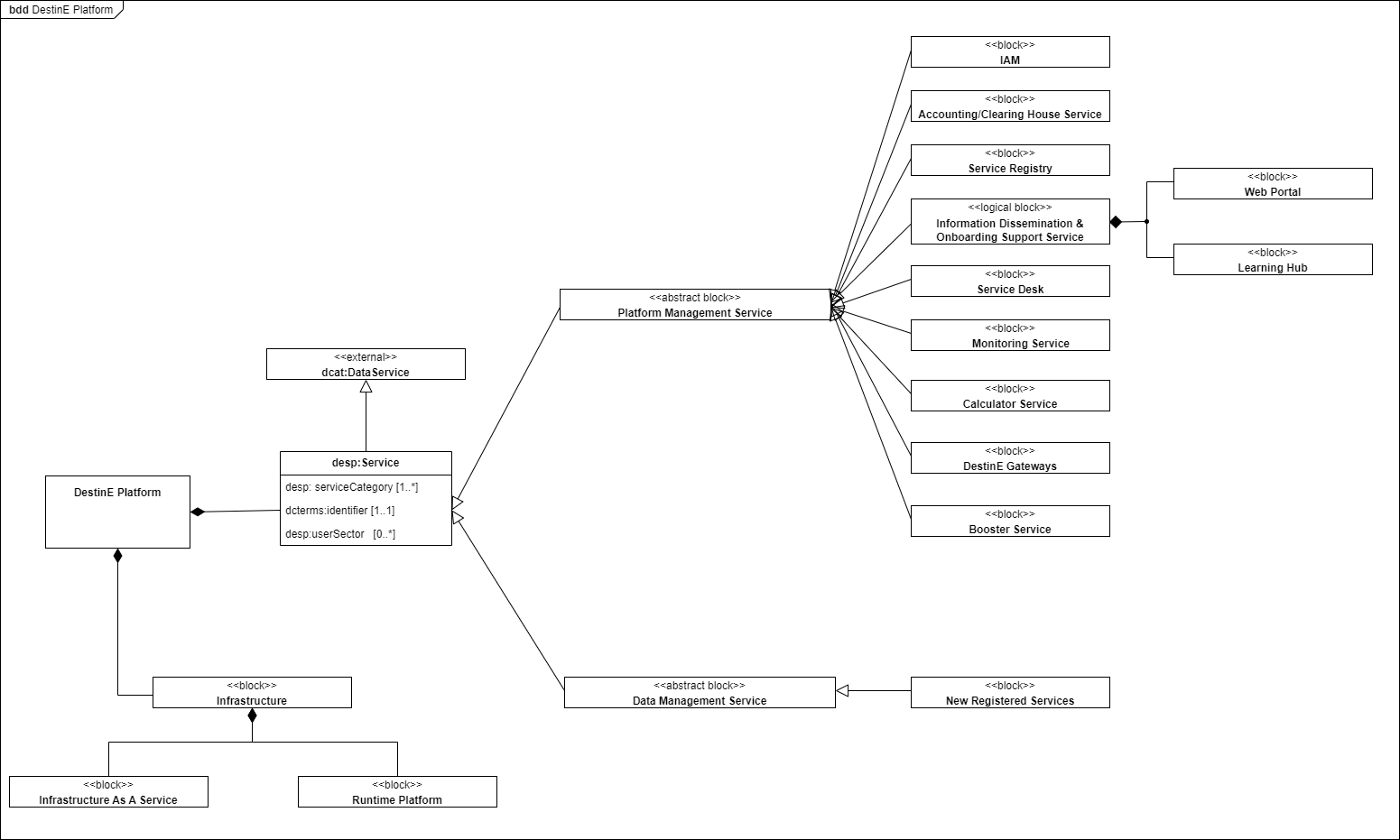

Services

Services represent the access points through which users discover and retrieve data. The ontology captures service metadata, endpoints, usage quotas, and licensing information.

Services are aggregated into a DataPortfolio that provides a unified catalogue of platform offerings.

Standards & Interoperability

The model extends DCAT 3 and integrates standard vocabularies:

Dublin Core · FOAF · PROV-O

Ensuring interoperability with European data portals and compliance with DCAT-AP 3.0.0 specifications.

Cross-reference for Destination Earth Platform Ontology classes, object properties and data properties back to ToC

This section provides details for each class and property defined by Destination Earth Platform Ontology.

Classes

Agentc back to ToC or Class ToC

IRI: http://xmlns.com/foaf/0.1/Agent

has super-classes
has sub-classes
DestinEPlatformAdministrator c, RegisteredUser c, UnregisteredUser c

Allocated Resourcec back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#AllocatedResource

A Resource allocated to a specific Tenancy Project, accessible to its Project Participants.
has super-classes
is in domain of
has Instantiated Metric op
is in range of
has Allocated Resource op, is Allocated Resource Offer op

AuxiliaryDatac back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#AuxiliaryData

Auxiliary file associated with a process, which can be mandatory or optional for its execution.
has super-classes
is in domain of
has Auxiliary Parameter op
is in range of
uses Mandatory Aux Data op, uses Optional Aux Data op
is disjoint with
AuxiliaryParameter c, ProcessParameters c, Variable c

AuxiliaryParameterc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#AuxiliaryParameter

List of parameters related to a specific auxiliary file within a process.
has super-classes
is in range of
has Auxiliary Parameter op
is disjoint with
AuxiliaryData c, ProcessParameters c, Variable c

Catalogc back to ToC or Class ToC

IRI: http://www.w3.org/ns/dcat#Catalog

has super-classes

Collectionc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Collection

Subclass of dcat:DatasetSeries, constrained according to the DCAT-AP 3.0.0 profile.
has super-classes
Dataset Series c
is in domain of
is In Program Subset op
is disjoint with
DataPortfolio c, Dataset (DestinE Platform) c, Process c, Product c, Service c

ComputationalModelDatasetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#ComputationalModelDataset

Dataset of data generated from simulations run on computer models that represent physical, biological, chemical, or other types of systems using mathematical formulations.
has super-classes
Dataset (DestinE Platform) c
is in domain of
last Update dp, model Name dp, model Type dp, model Version dp
is disjoint with
GeospatialModelsDataset c, InSituMeasurementsDataset c, IoTDataset c, NonSatelliteObservationsDataset c, SatelliteObservationsDataset c, StatisticalAnalysisDataset c

Data Servicec back to ToC or Class ToC

IRI: http://www.w3.org/ns/dcat#DataService

has super-classes
has sub-classes
Service c

DataPortfolioc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#DataPortfolio

A curated collection of data and related information, included in a Service offering.
has super-classes
is in domain of
has Dataset op, is Data Portfolio Of op
is in range of
has Data Portfolio op
is disjoint with
Collection c, Dataset (DestinE Platform) c, Process c, Product c, Service c

Datasetc back to ToC or Class ToC

IRI: http://www.w3.org/ns/dcat#Dataset

has super-classes
has sub-classes
Dataset (DestinE Platform) c
is in range of
dataset op, serves Dataset op

Dataset (DestinE Platform)c back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Dataset

Subclass of dcat:Dataset, constrained according to the DCAT-AP 3.0.0 profile.
has super-classes
Dataset c
has sub-classes
ComputationalModelDataset c, GeospatialModelsDataset c, InSituMeasurementsDataset c, IoTDataset c, NonSatelliteObservationsDataset c, SatelliteObservationsDataset c, StatisticalAnalysisDataset c
is in domain of
has Product op, has Spatial Property op, has Temporal Property op, has Variable op, is Processed By op
is in range of
has Dataset op, is Result Of op, uses Dataset op
is disjoint with
Collection c, DataPortfolio c, Process c, Product c, Service c

Dataset Seriesc back to ToC or Class ToC

IRI: http://www.w3.org/ns/dcat#DatasetSeries

has super-classes
has sub-classes
Collection c
is in range of
in Series op

DestinEPlatformAdministratorc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#DestinEPlatformAdministrator

A DestinE Platform Administrator is an actor in charge of managing the configuration elements of the DestinE Platform Core Services with administrative privileges. A DestinE Platform Administrator applies the identified operational routines and approved changes to the IAM Service and other components' configurations.
has super-classes
Agent c
is disjoint with
RegisteredUser c, UnregisteredUser c

Distributionc back to ToC or Class ToC

IRI: http://www.w3.org/ns/dcat#Distribution

has super-classes
is in domain of
checksum op, has Policy op
is in range of
distribution op

Dynamic Metricc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#DynamicMetric

Metadata of a sizeable Resource characteristic (min, max, step, default, unit) set by the Tenancy Admin at allocation.
has super-classes
is in domain of
quantity Max dp, quantity Min dp, resource Unit dp, step Value dp
is in range of
has Dynamic Metric op

GeospatialModelsDatasetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#GeospatialModelsDataset

Dataset of data from models representing physical objects, structures, terrain, or environments, as well as geospatial data such as maps, satellite imagery, LiDAR point clouds, geographic information system (GIS) datasets, shapefiles, or 3D models.
has super-classes
Dataset (DestinE Platform) c
is in domain of
dependencies Linked Data dp, geospatial Models Type dp, model Complexity dp
is disjoint with
ComputationalModelDataset c, InSituMeasurementsDataset c, IoTDataset c, NonSatelliteObservationsDataset c, SatelliteObservationsDataset c, StatisticalAnalysisDataset c

InSituMeasurementsDatasetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#InSituMeasurementsDataset

Dataset of direct observation data from the actual location of the phenomena or variables of interest.
has super-classes
Dataset (DestinE Platform) c
is in domain of
collection Method dp, measurement Instrument dp
is disjoint with
ComputationalModelDataset c, GeospatialModelsDataset c, IoTDataset c, NonSatelliteObservationsDataset c, SatelliteObservationsDataset c, StatisticalAnalysisDataset c

Instantiated Metricc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#InstantiatedMetric

The concrete value of a Dynamic Metric set for a given Allocated Resource, within its boundaries.
has super-classes
is in range of
has Instantiated Metric op

IoTDatasetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#IoTDataset

Dataset of data collected from a network of interconnected devices embedded with sensors, software, and other technologies that enable them to exchange data over the internet.
has super-classes
Dataset (DestinE Platform) c
is in domain of
device Identification dp, sensor dp
is disjoint with
ComputationalModelDataset c, GeospatialModelsDataset c, InSituMeasurementsDataset c, NonSatelliteObservationsDataset c, SatelliteObservationsDataset c, StatisticalAnalysisDataset c

Kindc back to ToC or Class ToC

IRI: http://www.w3.org/2006/vcard/ns#Kind

The parent class for all vCard objects, representing any kind of entity (individual, organization, group, location).
is in domain of
has email op
is in range of
contact Point op

License Documentc back to ToC or Class ToC

IRI: http://purl.org/dc/terms/LicenseDocument

has super-classes
is in range of
license op

NonSatelliteObservationsDatasetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#NonSatelliteObservationsDataset

Dataset of data collected through sensors or instruments not mounted on satellites.
has super-classes
Dataset (DestinE Platform) c
is in domain of
data Sensor dp, data Source dp, derived Product dp
is disjoint with
ComputationalModelDataset c, GeospatialModelsDataset c, InSituMeasurementsDataset c, IoTDataset c, SatelliteObservationsDataset c, StatisticalAnalysisDataset c

Period Of Timec back to ToC or Class ToC

IRI: http://purl.org/dc/terms/PeriodOfTime

has super-classes

Personc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Person

An individual registered in the system, identified as a single user.
has super-classes
RegisteredUser c
is in domain of
user Profile dp
is disjoint with
RegisteredEntity c

Processc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Process

Transformation workflow that converts one dataset into another.
has super-classes
is in domain of
has Process Parameter op, is Product Result Of op, is Result Of op, process Name dp, process Type dp, uses Mandatory Aux Data op, uses Optional Aux Data op
is in range of
is Processed By op, is Product Processed By op
is disjoint with
Collection c, DataPortfolio c, Dataset (DestinE Platform) c, Product c, Service c

ProcessParametersc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#ProcessParameters

Configuration parameters associated with a Process for data processing.
has super-classes
is in range of
has Process Parameter op
is disjoint with
AuxiliaryData c, AuxiliaryParameter c, Variable c

Productc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Product

Concrete and distributable realization of a dataset, associated with a specific spatial and temporal portion, structured according to defined technical standards.
has super-classes
is in domain of
has Product Spatial Property op, has Product Temporal Property op, is Product Processed By op
is in range of
has Product op, is Product Result Of op
is disjoint with
Collection c, DataPortfolio c, Dataset (DestinE Platform) c, Process c, Service c

Programc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Program

Highest level of the Data Portfolio and the main entry grouping data within a Service offering. The program refers to a scientific or political initiative funded by a public entity or organization such as the European Union. Examples of programs are Copernicus or Destination Earth.
has super-classes
is in range of
is In Program op

ProgramSubsetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#ProgramSubset

Specifies the missions or services within a Program.
has super-classes
is in domain of
is In Program op
is in range of
is In Program Subset op

Projectc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Project

Links Tenancy members to Services provided Resources by mapping Project Members to Project Resources. A Project can reference one or more Tenancy Resources. These can be accessed by (and only by) Tenancy Members assigned to the Project.
has super-classes
is in domain of
has Allocated Resource op, has Participant op, is tenancy of op
is in range of
has Project op
is disjoint with
Tenancy c, TenancyResourceOffer c

RegisteredEntityc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#RegisteredEntity

An entity registered in the system, typically an organization or company.
has super-classes
RegisteredUser c
has sub-classes
RegisteredServiceProvider c
is in domain of
classification dp
is disjoint with
Person c

RegisteredServiceProviderc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#RegisteredServiceProvider

Providers of services listed in the platform Service Registry, and available to Standard Users.
has super-classes
RegisteredEntity c

RegisteredUserc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#RegisteredUser

Users registered in the IAM service.
has super-classes
Agent c
has sub-classes
Person c, RegisteredEntity c
is in domain of
category dp, sector dp
is in range of
has Admin op, has Member op, has Participant op
is disjoint with
DestinEPlatformAdministrator c, UnregisteredUser c

Resource Offerc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#ResourceOffer

A Service Provider's declaration of provided Resources, registered in the DestinE Service Registry for discovery and allocation.
has super-classes
is in domain of
dynamic Resource dp, has Dynamic Metric op, has Terms And Conditions op, is Allocated Resource Offer op, resource Type op, resource provisioning type op, temporal Max dp, temporal Min dp, temporal Step Value dp
is in range of
has Resource Offer op

SatelliteObservationsDatasetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#SatelliteObservationsDataset

Dataset of data that encompasses a wide range of information collected by satellites orbiting the Earth, including images, measurements, and other data regarding the Earth’s atmosphere, land, oceans, and space environment.
has super-classes
Dataset (DestinE Platform) c
is in domain of
platform Name dp, sensor Name dp, sensor Type dp
is disjoint with
ComputationalModelDataset c, GeospatialModelsDataset c, InSituMeasurementsDataset c, IoTDataset c, NonSatelliteObservationsDataset c, StatisticalAnalysisDataset c

Servicec back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Service

Subclass of dcat:DataService, constrained according to the DCAT-AP 3.0.0 profile.
has super-classes
Data Service c
is in domain of
consumes op, has Data Portfolio op, has Tenancy Resource Offer op, is Consumed By op, service Category dp, user Sector dp, uses Dataset op
is in range of
consumes op, is Consumed By op, is Data Portfolio Of op
is disjoint with
Collection c, DataPortfolio c, Dataset (DestinE Platform) c, Process c, Product c

SpatialPropertyc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#SpatialProperty

These spatial properties serve as critical descriptors, enabling users to effectively discover, interpret, and utilize the datasets available on the DestinE platform.
has super-classes
is in domain of
resolution Tag dp, spatial Extent dp, spatial Representation dp, spatial Type dp
is in range of
has Product Spatial Property op, has Spatial Property op
is disjoint with
TemporalProperty c

StatisticalAnalysisDatasetc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#StatisticalAnalysisDataset

Dataset of data that encompasses diverse information collected from surveys, censuses, administrative records, experiments, or other data collection methods. Typically, it refers to numerical information collected, processed, and analysed from various sources to draw meaningful insights and make informed decisions.
has super-classes
Dataset (DestinE Platform) c
is in domain of
classification System dp, resource Data Type dp, revision Date dp
is disjoint with
ComputationalModelDataset c, GeospatialModelsDataset c, InSituMeasurementsDataset c, IoTDataset c, NonSatelliteObservationsDataset c, SatelliteObservationsDataset c

TemporalPropertyc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#TemporalProperty

Time-related attributes. This aspect provides crucial context for understanding the dataset’s temporal scope.
has super-classes
is in domain of
persistency On Service dp, time Label dp
is in range of
has Product Temporal Property op, has Temporal Property op
is disjoint with
SpatialProperty c

Tenancyc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Tenancy

Container of Users that can access and consume Project Resources by participating in Projects.
has super-classes
is in domain of
has Admin op, has Member op, has Project op
is in range of
is tenancy of op
is disjoint with
Project c, TenancyResourceOffer c

TenancyResourceOfferc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#TenancyResourceOffer

Each Tenancy Resource Offer represents a configurable set of resources available within a tenancy. The model is designed to be flexible and resilient, allowing dynamic definition of resource metrics through the property dynamicResource. These metrics describe specific characteristics without enforcing strict resource types, which are determined by parent attributes.
has super-classes
is in domain of
has Resource Offer op
is in range of
has Tenancy Resource Offer op
is disjoint with
Project c, Tenancy c

Terms And Conditionsc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#TermsAndConditions

The terms and conditions governing the use of a Tenancy and/or a Resource.
has super-classes
is in range of
has Terms And Conditions op

UnregisteredUserc back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#UnregisteredUser

Users who are not registered in the IAM Service and therefore are able to access a limited set of DestinE Platform functionalities.
has super-classes
Agent c
is disjoint with
DestinEPlatformAdministrator c, RegisteredUser c

Variablec back to ToC or Class ToC

IRI: https://ontology.destine.eu/desp#Variable

Fundamental unit of data within the model, representing the most granular level of information.
has super-classes
is in domain of
physical Quantity dp, unit dp
is in range of
has Variable op
is disjoint with
AuxiliaryData c, AuxiliaryParameter c, ProcessParameters c

Object Properties

access U R Lop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#accessURL

has range
Resource c

applicable Legislationop back to ToC or Object Property ToC

IRI: http://data.europa.eu/r5r/applicableLegislation

has range
Legal Resource c

based nearop back to ToC or Object Property ToC

IRI: http://xmlns.com/foaf/0.1/based_near

has range
Spatial Thing c

checksumop back to ToC or Object Property ToC

IRI: http://spdx.org/rdf/terms#checksum

has domain
Distribution c
has range
Checksum c

compress Formatop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#compressFormat

has range
Media Type c

consumesop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#consumes

has domain
Service c
has range
Service c
is inverse of
is Consumed By op

contact Pointop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#contactPoint

has range
Kind c

crsop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#crs

The Coordinate Reference System used by the service to offer the dataset. A widely used example is the Geographic Coordinate System (GCS), which uses latitude and longitude to define locations on the Earth. This metadata is indexed for keyword searches on the web portal. It can be omitted using the NA convention.
has range
Concept c

datasetop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#dataset

has range
Dataset c

distributionop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#distribution

has range
Distribution c

download U R Lop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#downloadURL

has range
Resource c

endpoint U R Lop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#endpointURL

has range
Resource c

formatop back to ToC or Object Property ToC

IRI: http://purl.org/dc/terms/format

has range
Media Type Or Extent c

has Adminop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasAdmin

has domain
Tenancy c
has range
RegisteredUser c

has Allocated Resourceop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasAllocatedResource

has domain
Project c
has range
Allocated Resource c

has Auxiliary Parameterop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasAuxiliaryParameter

has domain
AuxiliaryData c
has range
AuxiliaryParameter c

has Data Portfolioop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasDataPortfolio

has domain
Service c
has range
DataPortfolio c
is inverse of
is Data Portfolio Of op

has Datasetop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasDataset

has domain
DataPortfolio c
has range
Dataset (DestinE Platform) c
has sub-property chains
is Data Portfolio Of op o serves Dataset op

has Dynamic Metricop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasDynamicMetric

has domain
Resource Offer c
has range
Dynamic Metric c

has emailop back to ToC or Object Property ToC

IRI: http://www.w3.org/2006/vcard/ns#hasEmail

An email address associated with the object.
has domain
Kind c
has range
Email c

has Instantiated Metricop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasInstantiatedMetric

has domain
Allocated Resource c
has range
Instantiated Metric c

has Memberop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasMember

has domain
Tenancy c
has range
RegisteredUser c

has Participantop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasParticipant

has domain
Project c
has range
RegisteredUser c

has Policyop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/odrl/2/hasPolicy

has domain
Distribution c
has range
Policy c

has Process Parameterop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasProcessParameter

has domain
Process c
has range
ProcessParameters c

has Productop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasProduct

has domain
Dataset (DestinE Platform) c
has range
Product c

has Product Spatial Propertyop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasProductSpatialProperty

has domain
Product c
has range
SpatialProperty c

has Product Temporal Propertyop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasProductTemporalProperty

has domain
Product c
has range
TemporalProperty c

has Projectop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasProject

has domain
Tenancy c
has range
Project c
is inverse of
is tenancy of op

has Resource Offerop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasResourceOffer

has domain
TenancyResourceOffer c
has range
Resource Offer c

has Spatial Propertyop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasSpatialProperty

has domain
Dataset (DestinE Platform) c
has range
SpatialProperty c

has Temporal Propertyop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasTemporalProperty

has domain
Dataset (DestinE Platform) c
has range
TemporalProperty c

has Tenancy Resource Offerop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasTenancyResourceOffer

has domain
Service c
has range
TenancyResourceOffer c

has Terms And Conditionsop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasTermsAndConditions

has domain
Resource Offer c
has range
Terms And Conditions c

has Variableop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#hasVariable

has domain
Dataset (DestinE Platform) c
has range
Variable c

homepageop back to ToC or Object Property ToC

IRI: http://xmlns.com/foaf/0.1/homepage

has range
Document c

in Seriesop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#inSeries

has range
Dataset Series c

is Allocated Resource Offerop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isAllocatedResourceOffer

has domain
Resource Offer c
has range
Allocated Resource c

is Consumed Byop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isConsumedBy

has domain
Service c
has range
Service c
is inverse of
consumes op

is Data Portfolio Ofop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isDataPortfolioOf

has domain
DataPortfolio c
has range
Service c
is inverse of
has Data Portfolio op

is In Programop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isInProgram

has domain
ProgramSubset c
has range
Program c

is In Program Subsetop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isInProgramSubset

has domain
Collection c
has range
ProgramSubset c

is Processed Byop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isProcessedBy

has domain
Dataset (DestinE Platform) c
has range
Process c

is Product Processed Byop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isProductProcessedBy

has domain
Product c
has range
Process c

is Product Result Ofop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isProductResultOf

has domain
Process c
has range
Product c

is Result Ofop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isResultOf

has domain
Process c
has range
Dataset (DestinE Platform) c

is tenancy ofop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#isTenancyOf

has domain
Project c
has range
Tenancy c
is inverse of
has Project op

landing Pageop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#landingPage

has range
Document c

licenseop back to ToC or Object Property ToC

IRI: http://purl.org/dc/terms/license

has range
License Document c

media Typeop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#mediaType

has range
Media Type c

package Formatop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#packageFormat

has range
Media Type Or Extent c

resource provisioning typeop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#resourceProvisioningType

has domain
Resource Offer c
has range
Concept c

resource Typeop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#resourceType

has domain
Resource Offer c
has range
Concept c

rightsop back to ToC or Object Property ToC

IRI: http://purl.org/dc/terms/rights

has range
Rights Statement c

serves Datasetop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/dcat#servesDataset

has range
Dataset c

spatialop back to ToC or Object Property ToC

IRI: http://purl.org/dc/terms/spatial

has range
Location c

statusop back to ToC or Object Property ToC

IRI: http://www.w3.org/ns/adms#status

has range
Concept c

uses Datasetop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#usesDataset

has domain
Service c
has range
Dataset (DestinE Platform) c

uses Mandatory Aux Dataop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#usesMandatoryAuxData

has domain
Process c
has range
AuxiliaryData c

uses Optional Aux Dataop back to ToC or Object Property ToC

IRI: https://ontology.destine.eu/desp#usesOptionalAuxData

has domain
Process c
has range
AuxiliaryData c

Data Properties

categorydp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#category

has domain
RegisteredUser c
has range
Literal

classificationdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#classification

has domain
RegisteredEntity c
has range
string

classification Systemdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#classificationSystem

has domain
StatisticalAnalysisDataset c
has range
string

collection Methoddp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#collectionMethod

has domain
InSituMeasurementsDataset c
has range
string

data Sensordp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#dataSensor

has domain
NonSatelliteObservationsDataset c
has range
string

data Sourcedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#dataSource

has domain
NonSatelliteObservationsDataset c
has range
string

dependencies Linked Datadp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#dependenciesLinkedData

has domain
GeospatialModelsDataset c
has range
string

derived Productdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#derivedProduct

has domain
NonSatelliteObservationsDataset c
has range
string

device Identificationdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#deviceIdentification

has domain
IoTDataset c
has range
string

dynamic Resourcedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#dynamicResource

has domain
Resource Offer c
has range
string

family Namedp back to ToC or Data Property ToC

IRI: http://xmlns.com/foaf/0.1/familyName

has range
string

genderdp back to ToC or Data Property ToC

IRI: http://xmlns.com/foaf/0.1/gender

has range
string

geospatial Models Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#geospatialModelsType

has domain
GeospatialModelsDataset c
has range
string

given Namedp back to ToC or Data Property ToC

IRI: http://xmlns.com/foaf/0.1/givenName

has range
string

is Updatabledp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#isUpdatable

has range
boolean

keydp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#key

Uniquely identifies the value in a key–value pair.
has range
string

last Updatedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#lastUpdate

has domain
ComputationalModelDataset c
has range
date Time

measurement Instrumentdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#measurementInstrument

has domain
InSituMeasurementsDataset c
has range
string

model Complexitydp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#modelComplexity

has domain
GeospatialModelsDataset c
has range
string

model Namedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#modelName

has domain
ComputationalModelDataset c
has range
string

model Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#modelType

has domain
ComputationalModelDataset c
has range
string

model Versiondp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#modelVersion

has domain
ComputationalModelDataset c
has range
string

nickdp back to ToC or Data Property ToC

IRI: http://xmlns.com/foaf/0.1/nick

has range
string

persistency On Servicedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#persistencyOnService

has domain
TemporalProperty c
has range
date Time

physical Quantitydp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#physicalQuantity

has domain
Variable c
has range
string

platform Namedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#platformName

has domain
SatelliteObservationsDataset c
has range
string

process Namedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#processName

has domain
Process c
has range
string

process Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#processType

has domain
Process c
has range
string

processing Leveldp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#processingLevel

The stage of data processing provided.
has range
string

projection Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#projectionType

It refers to the method used to represent the Earth’s three-dimensional surface on a two-dimensional map or image by the service. This metadata is indexed for keyword searches on the web portal. It can be omitted using the NA convention.
has range
string

quantitydp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#quantity

has range
Literal

quantity Maxdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#quantityMax

has domain
Dynamic Metric c
has range
decimal

quantity Mindp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#quantityMin

has domain
Dynamic Metric c
has range
decimal

resolution Tagdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#resolutionTag

has domain
SpatialProperty c
has range
string

resource Data Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#resourceDataType

has domain
StatisticalAnalysisDataset c
has range
string

resource Tenancy Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#resourceTenancyType

has range
string

resource Unitdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#resourceUnit

has domain
Dynamic Metric c
has range
string

revision Datedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#revisionDate

has domain
StatisticalAnalysisDataset c
has range
date Time

sectordp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#sector

has domain
RegisteredUser c
has range
string

sensordp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#sensor

has domain
IoTDataset c
has range
string

sensor Namedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#sensorName

has domain
SatelliteObservationsDataset c
has range
string

sensor Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#sensorType

has domain
SatelliteObservationsDataset c
has range
string

service Categorydp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#serviceCategory

has domain
Service c
has range
string

spatial Extentdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#spatialExtent

has domain
SpatialProperty c
has range
string

spatial Representationdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#spatialRepresentation

has domain
SpatialProperty c
has range
string

spatial Typedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#spatialType

has domain
SpatialProperty c
has range
string

step Valuedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#stepValue

has domain
Dynamic Metric c
has range
Literal

temporal Maxdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#temporalMax

has domain
Resource Offer c
has range
duration

temporal Mindp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#temporalMin

has domain
Resource Offer c
has range
duration

temporal Resolutiondp back to ToC or Data Property ToC

IRI: http://www.w3.org/ns/dcat#temporalResolution

has range
duration

temporal Step Valuedp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#temporalStepValue

has domain
Resource Offer c
has range
duration

time Labeldp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#timeLabel

has domain
TemporalProperty c
has range
date Time

unitdp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#unit

has domain
Variable c
has range
string

user Profiledp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#userProfile

has domain
Person c
has range
string

user Sectordp back to ToC or Data Property ToC

IRI: https://ontology.destine.eu/desp#userSector

has domain
Service c
has range
string

valuedp back to ToC or Data Property ToC

IRI: http://www.w3.org/ns/prov#value

has range
Literal

versiondp back to ToC or Data Property ToC

IRI: http://www.w3.org/ns/dcat#version

has range
Literal

Annotation Properties

in Schemeap back to ToC or Annotation Property ToC

IRI: http://www.w3.org/2004/02/skos/core#inScheme

max Cardinalityap back to ToC or Annotation Property ToC

IRI: http://www.w3.org/2002/07/owl#maxCardinality

min Qualified Cardinalityap back to ToC or Annotation Property ToC

IRI: http://www.w3.org/2002/07/owl#minQualifiedCardinality

pref Labelap back to ToC or Annotation Property ToC

IRI: http://www.w3.org/2004/02/skos/core#prefLabel

preferred Namespace Prefixap back to ToC or Annotation Property ToC

IRI: http://purl.org/vocab/vann/preferredNamespacePrefix

preferred Namespace Uriap back to ToC or Annotation Property ToC

IRI: http://purl.org/vocab/vann/preferredNamespaceUri

qualified Cardinalityap back to ToC or Annotation Property ToC

IRI: http://www.w3.org/2002/07/owl#qualifiedCardinality

version Infoap back to ToC or Annotation Property ToC

IRI: http://www.w3.org/2002/07/owl#versionInfo

Legend back to ToC

c: Classes
op: Object Properties
dp: Data Properties
ni: Named Individuals

Platform Instantiation back to ToC

Note. This section is provided for information only. It describes how the conceptual model defined by this ontology is currently realised in the DestinE Platform, but it is not part of the ontology specification: the platform's architecture can evolve independently of the model. The authoritative description of the architecture is the DestinE Platform System Design Document (SDD).

The platform is composed of an Infrastructure layer and a set of desp:Service instances. Services are conceptually grouped into two categories: Platform Management Services (PMS), the trusted, unique pillars enabling other services to integrate with the platform, and Data Management Services (DMS), which expose data and applications to consumers and are driven by user demand. The block diagram below illustrates the current instantiation; the authoritative architectural description is maintained in the DestinE Platform System Design Document and Master ICD (DEST-SRCO-DD-2300317, Section 4).

The Platform Management Services in the current platform instantiation are:

  • Identity and Access Management (IAM) Service
  • Accounting & Clearing House Service
  • Service Registry
  • Information Dissemination & Onboarding Support Service
  • Service Desk
  • Monitoring Service
  • Calculator Service
  • Booster Service
  • DestinE Gateways

Refer to the SDD for the description of each service.

DestinE Platform Block Definition Diagram showing Infrastructure (IaaS, Runtime Platform), the abstract Service block specialising dcat:DataService, and its decomposition into Platform Management Services and Data Management Services.
Figure — DestinE Platform Block Definition Diagram.

Note on abstraction levels. desp:Service is a class of this ontology; PMS and DMS are conceptual categories used to group concrete services according to their role in the ecosystem. They are not modelled as distinct ontology classes: all services share the same desp:Service class definition. The components shown in the diagram are instances of desp:Service in the current platform deployment and are subject to change without affecting the conceptual model defined here.
